Automobile handrail, steering wheel, instrument panel production can choose two components of low pressure foaming machine, two components of high pressure foaming machine and automobile handrail, steering wheel, instrument panel production line. The picture of the machine is as follows:

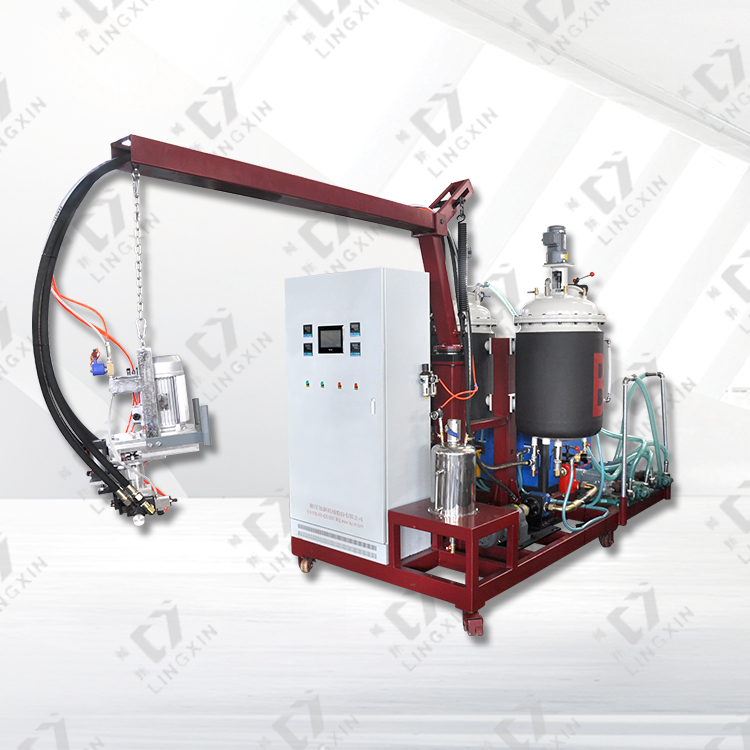

Automobile handrail, steering wheel, instrument panel, two-component low-pressure foaming machine is a new product independently developed by lingxin company.

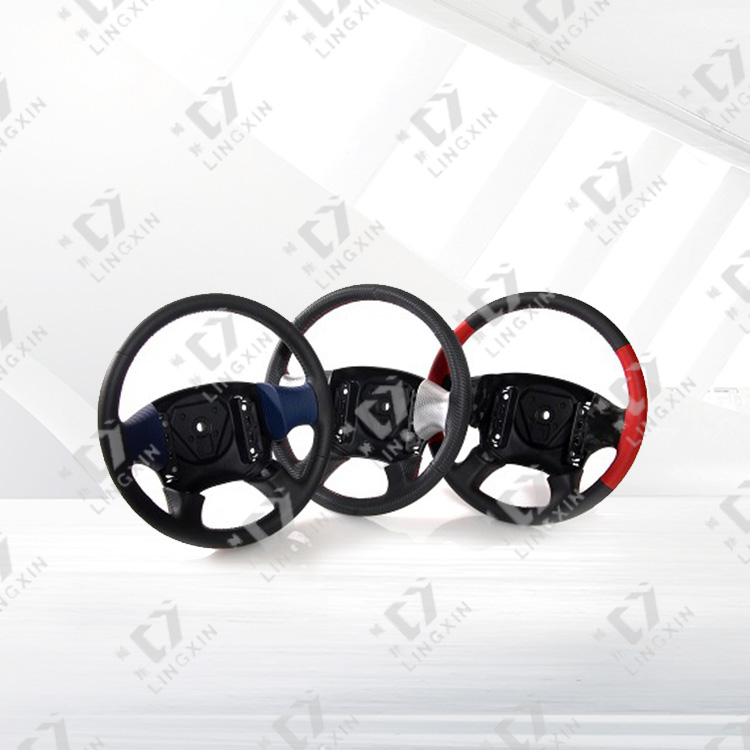

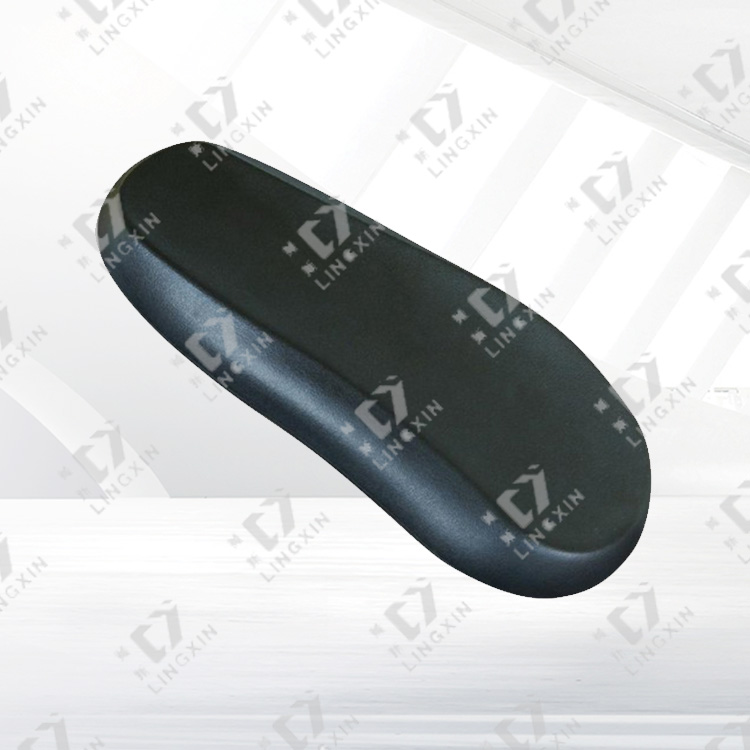

Application: this model is suitable for handrail, steering wheel, instrument panel, etc.
Equipment technical parameters:
Item/model | total spit out quantity （g/s） | total power（kw） | Head stirring speed（r/min） | mix proportion | Overall dimensions (length X width X height) | height（kg） | |
soft bubble | RR2-280 | 50-280g | 11 | 5200 | 100：50-150 | 2200*1400*2300 | 1000 |

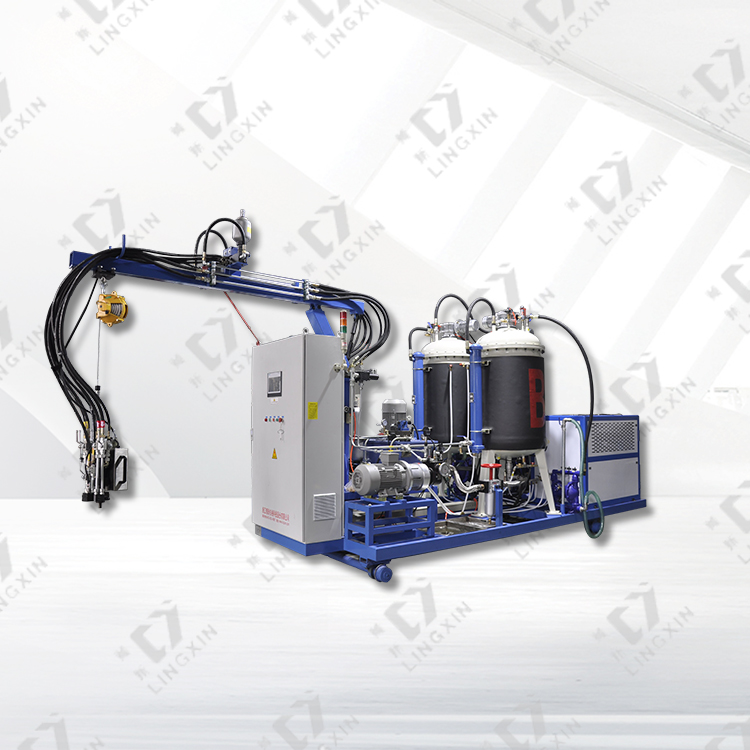

Car armrest, steering wheel, dashboard components high pressure foaming machine is liquid polyols and isocyanates two components of the raw materials are stored in two material storage tank, with two rotating axial plunger metering pump (radial) sent to the mixed system, under the action of hydraulic mixing head open, two components was injected into the small mixing chamber with a high speed, high speed collision and mixing effect, make the material liquid evenly, mixing effect is good, no clean, stable performance, easy operation, achieve the goal of high production efficiency and environmental protection.
Application: this model is suitable for handrail, steering wheel, instrument panel, etc.
Equipment technical parameters:
Item/model | H2-L15 |
Spit out quantity（g/s） | 50-160g/s |
A tank capacity（L） | 250/500 |
B tank capacity（L） | 250/500 |
injection pressure（mpa） | 5-15 |
inject time（S） | 0.5-99.99 |
total power（kw） | 26 |
height（kg） | 1800 |

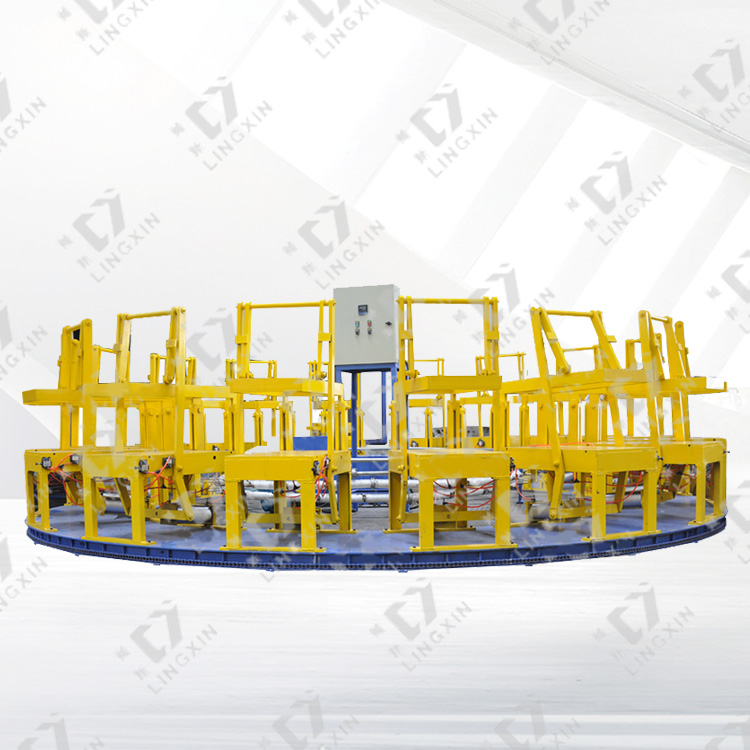

Automobile handrail, steering wheel, instrument panel disc line is used for all kinds of automobile handrail, steering wheel, instrument panel continuous foaming production. The equipment operates at a constant speed, and the running speed can be adjusted to the production beat. The disk is equipped with a power supply and air source conveying system. It forms a complete foaming production line with mould frame and mould temperature machine.
Application: this production line is suitable for producing automobile handrail, steering wheel, instrument panel, etc.
Equipment features:
Continuous cycle operation, simple operation, smooth transmission, high production efficiency.
Equipment technical parameters:
Disc diameter (m) | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 |
